Product Overview
Handheld Spectrum Analyzer

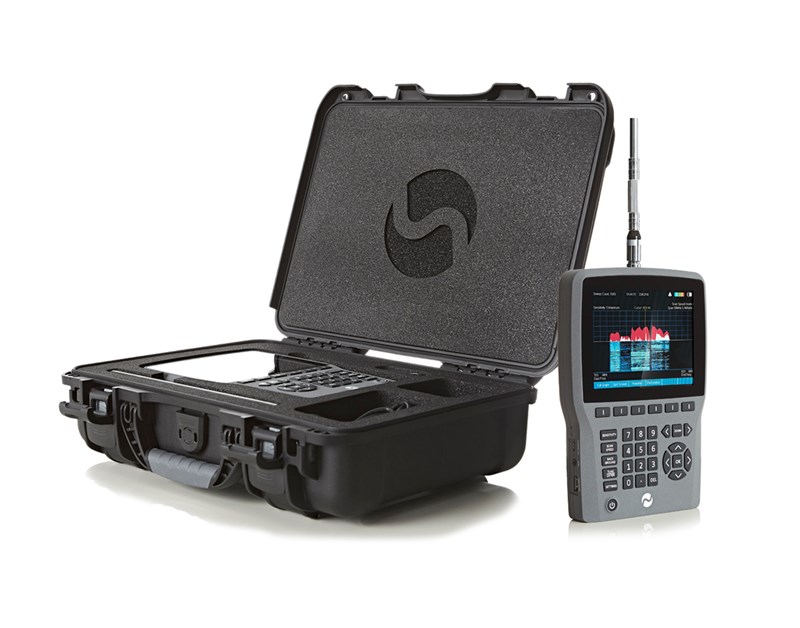

The JJN Digital Handheld Spectrum Analyzer HSA-Q1 is designed specifically for professional countermeasures use. With a frequency range of 0 to 13.4 GHz and sweep time of just half a second, the HSA-Q1 spectrum analyzer offers unprecedented performance in a truly handheld package. The unit detects all types of RF signals within range, especially modern pulsed burst signals that can be missed by slower sweeping units.
This Handheld RF Spectrum Analyzer has been designed with the highest possible technical specification to ensure maximum detection capability and has a range of invaluable features to aid countermeasures RF detection or ‘Sweeps’. Yet, despite its technical capability the HSA-Q1 is easy to operate and features an intuitive, user friendly interface. Ideal for professional TSCM applications.
Specifications:
Frequency Range 1 MHz to 13.44 GHz
Sweep time of just 0.5 seconds (Full Range)
Spectrogram Waterfall Function for detected signal analysis
Tune & Listen demodulation function – AM/WFM/NFM
Data Logging to USB Stick with Time & Date stamp
Background Memory Function to compare previous sweeps
Very High RF Sensitivity (-80 dBm Sweep, -100 dBm Direct Tune)
6″ TFT Display Screen – Outdoor Readable
Audio through internal Speaker or Earphones
Multi-element custom antenna supplied
Internal Lithium Polymer Battery – 4 Hours Battery Life
Weight just 2.9 Lbs.
Machined Aluminum Enclosure
Supplied in Compact Military Standard Carry Case
One (1) year manufacturer’s warranty.
