R Series: Keyway Small Pin Tumbler Cabinet Locks (CCL R1)

Product Details

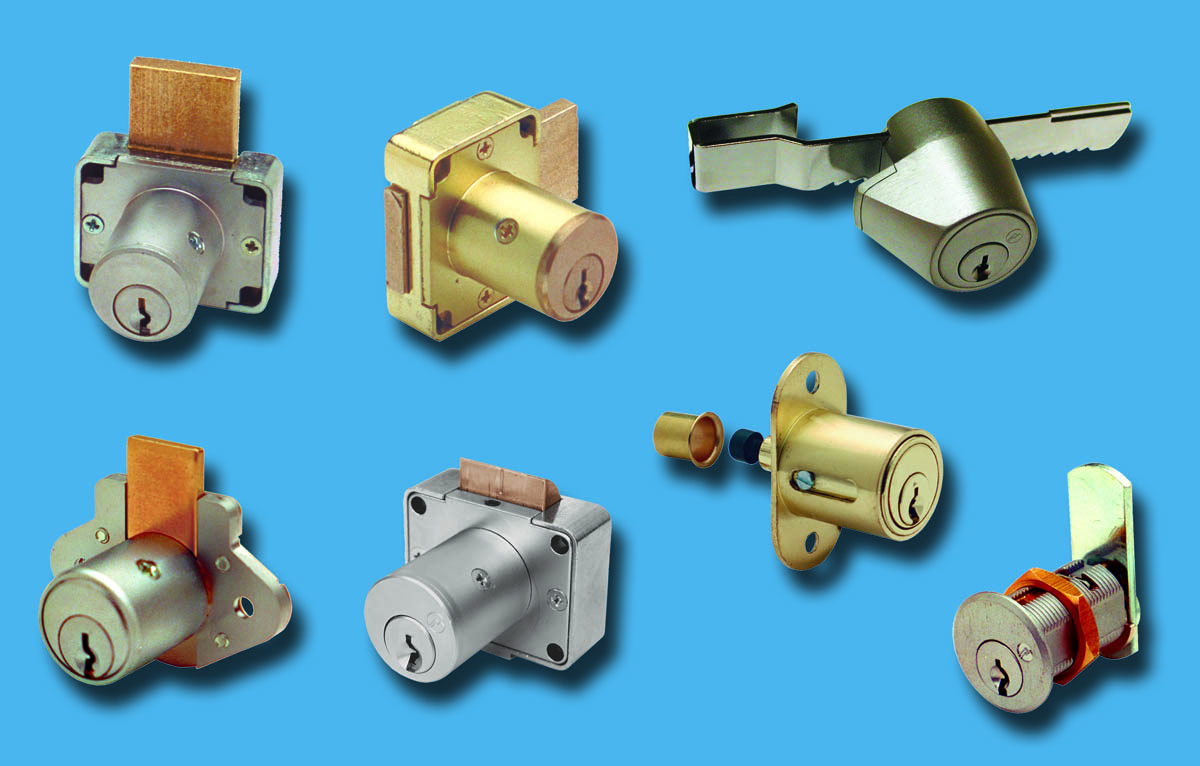

A value priced alternative to commercial keyway or IC core locks. These locks conform to the CCL R1 (5 or 6 pin tumbler) key system. A variety of locks are available including door and drawer deadbolt locks, latch locks, cam locks, sliding door plunger locks and ratchet/showcase locks. All locks are easily rekeyable in the field.

500 DR Deadbolt Cabinet Door Lock General Features:
- Cabinet lock - deadbolt door lock
- Easily rekeyable via set screw cylinder release mechanism
- Solid brass pin tumbler cylinder drilled for 5 pins
- ANSI/BHMA No. E07121/E07122
- Barrel lengths: 1" or 1-3/8" specify barrel length when ordering
- Barrel diameter: 7/8"
- Optional key-retaining* function available. Specify 100KR for right-hand or 100KL for left hand.
- 26D, US4 or 10B finish (note: 10B not available on 1-3/8")
- Includes 56-1 bar strike

600 DW Deadbolt Drawer Lock General Features:
- 600DW Cabinet lock - deadbolt drawer lock
- Easily rekeyable via set screw cylinder release mechanism
- Solid brass pin tumbler cylinder drilled for 5 pins
- ANSI/BHMA No. E07041/E07042
- Barrel lengths: 1", 1-3/8". Specify barrel length when ordering
- Barrel diameter: 7/8"
- Optional key-retaining* function available. Specify 600KV for vertical hand or 600KI for inverted hand.
- 26D, US4 or 10B finish
- Includes 12-3 angle strike
