N Series: National Keyway Small PIn Tumbler Cabinet Locks

Available from Olympus Lock, Inc.

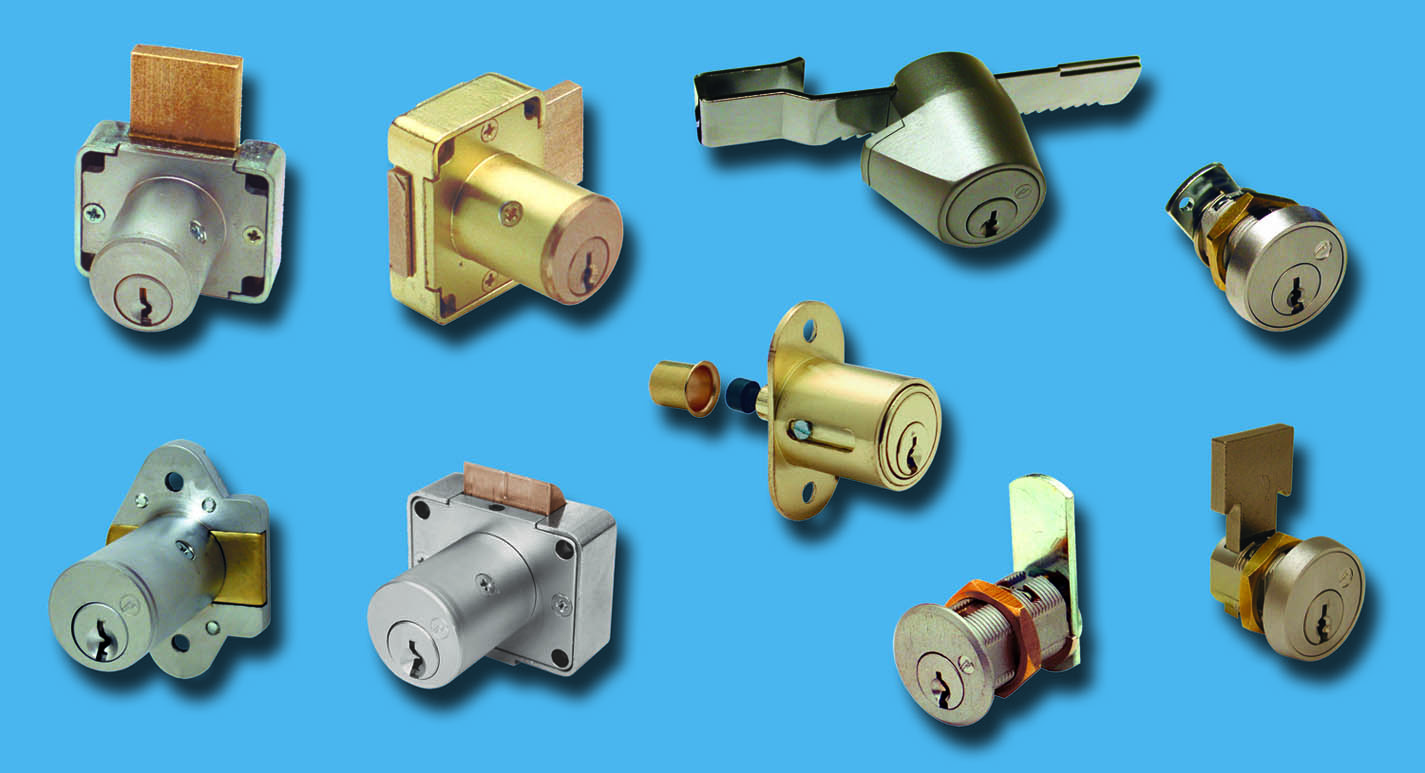

A value priced alternative to commercial keyway or IC core locks. These locks conform to the National D4291/D4292 key system. A variety of locks are available on this keyway including door and drawer deadbolt locks, latch locks, cam locks, sliding door plunger locks, ratchet/showcase locks and file cabinet locks. All locks are easily rekeyable in the field.

100 DR Deadbolt Door Lock General Features:
- Cabinet lock - deadbolt door lock
- Easily rekeyable via set screw cylinder release mechanism
- Solid brass pin tumbler cylinder drilled for 5 pins
- ANSI/BHMA No. E07121/E07122
- Barrel lengths: 1" or 1-3/8" specify barrel length when ordering
- Barrel diameter: 7/8"
- Optional key-retaining* function available. Specify 100KR for right-hand or 100KL for left hand.
- 26D, US4 or 10B finish (note: 10B not available on 1-3/8")
- Includes 56-1 bar strike

200 DW Deadbolt Drawer Lock - N Series
- 200DW Cabinet lock - deadbolt drawer lock
- Easily rekeyable via set screw cylinder release mechanism
- Solid brass pin tumbler cylinder drilled for 5 pins
- ANSI/BHMA No. E07041/E07042
- Barrel lengths: 1", 1-3/8" or 1-5/8" (see below). Specify barrel length when ordering
- Barrel diameter: 7/8"
- Optional key-retaining* function available. Specify 200KV for vertical hand or 200KI for inverted hand.
- 26D, US4 or 10B finish (10B not available on 1-5/8" barrel)
1-5/8" barrel length for 3/4" x 3/4" drawer construction
